AW-CP CHISEL STANDARD
Cast Iron Legs
Safety Pin System
Optional Roller System
The Quality of Profile

Model AW-CP is used with the cultivation of soil without needing plow in the field after harvesting. Thanks to its long legs, it breaks up the hard upper crust formed under the plow. It carries out less clod soil cultivation during the dry summer months in which the plow cultivation cannot be done.

Steel Iron Legs

The casting legs which are 32 kg weight operate perfectly even in the heavy soil conditions.

Safety Pin System

Thanks to the safety pin which is developed by Özdöken for the first time, it operates without harming the leg even in the hardest conditions due to the break of the pin placed before the leg when the legs are extremely forced.

Optional Roller System

The roller attached on the back of the chisel is made of walled-pipe and breaks up the clods on the soil surface perfectly thanks to the sequential and spiral notches welded on.

The Quality of Metal rod andmanufacture

The frames are produced in visible and measurable to see quality and thickness of profile.

Optional Side Cutting Blades

Thanks to the side blades attached to the legs on the tray, the soil is better ventilated and processed.

Optional 3 Row Chasis

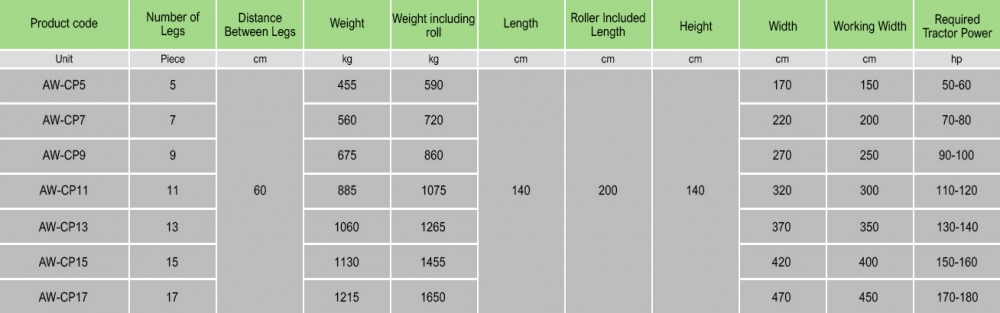

9-11-13-15 It is possible to produce as optional 3 rows of chassis in legged machines.
