AW-SSP 6017 Насос из нержавеющей стали

AW-SSP 6017

Specifications

Maximum water temperature :

Frequency : 50 Hz

Max. voltage change :

Max. sand content :

Output hopper connection : 2 1/2”

Filter : Paslanmaz çelik (AISI 304)

Coupling : Paslanmaz çelik (AISI 304)

Shaft : Paslanmaz çelik (AISI 304)

Impeller : Paslanmaz çelik (AISI 304L)

Diffuser : Paslanmaz çelik (AISI 304L)

Output hopper connection :

Pump outer diameter: 135 mm

Direction of rotation :

Speed : 2900 rpm

Shaft diameter :

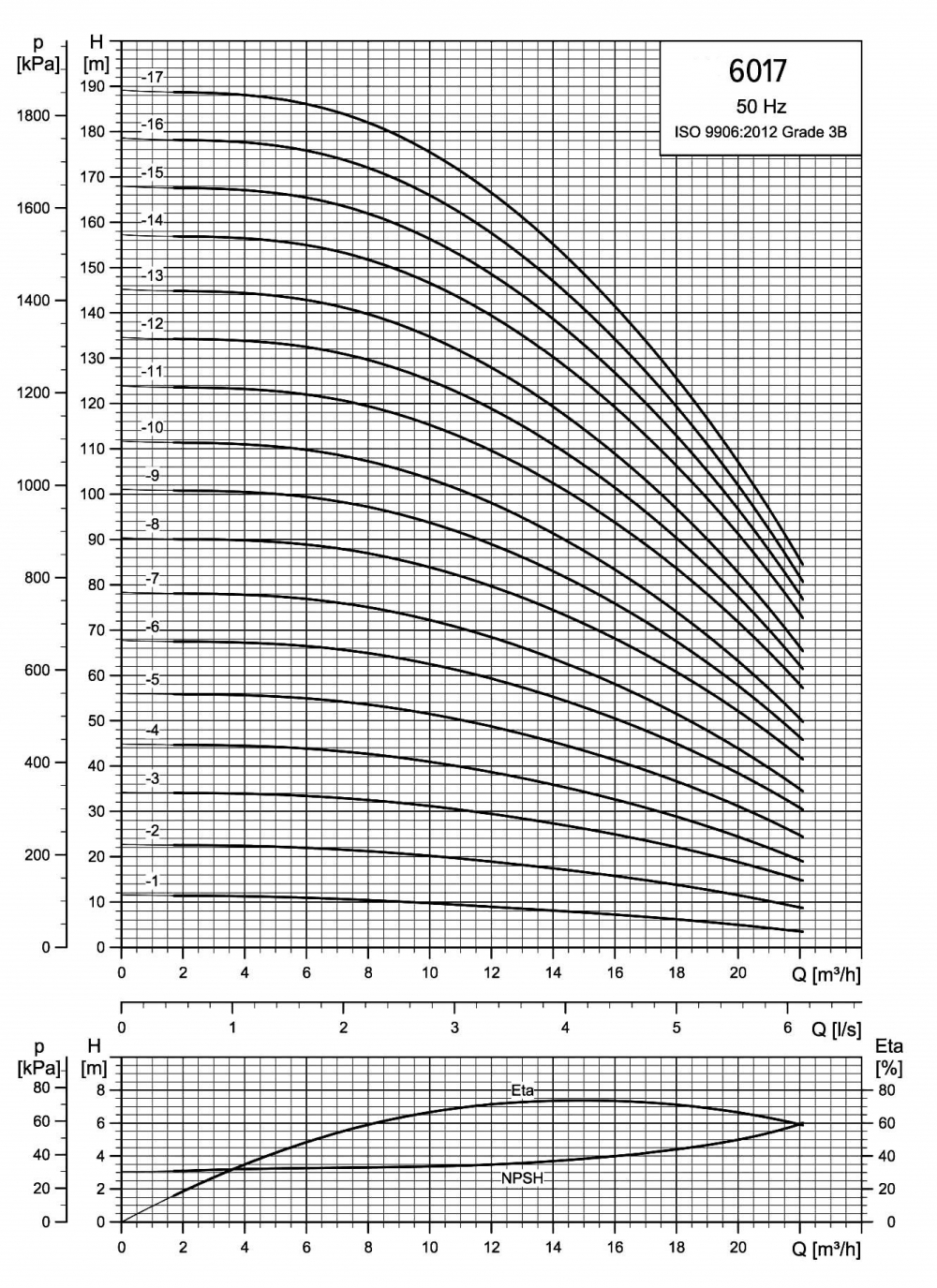

Pump performance curves are acquired with water whose specific density is 1 gr/cm3 at 150C temperature under 1 bar atmospheric pressure.

AW-SSP (AGROWORLD STAINLESS STEEL PUMP)

6 (Nominal diameter)

17 (Capacity m³/hour)
